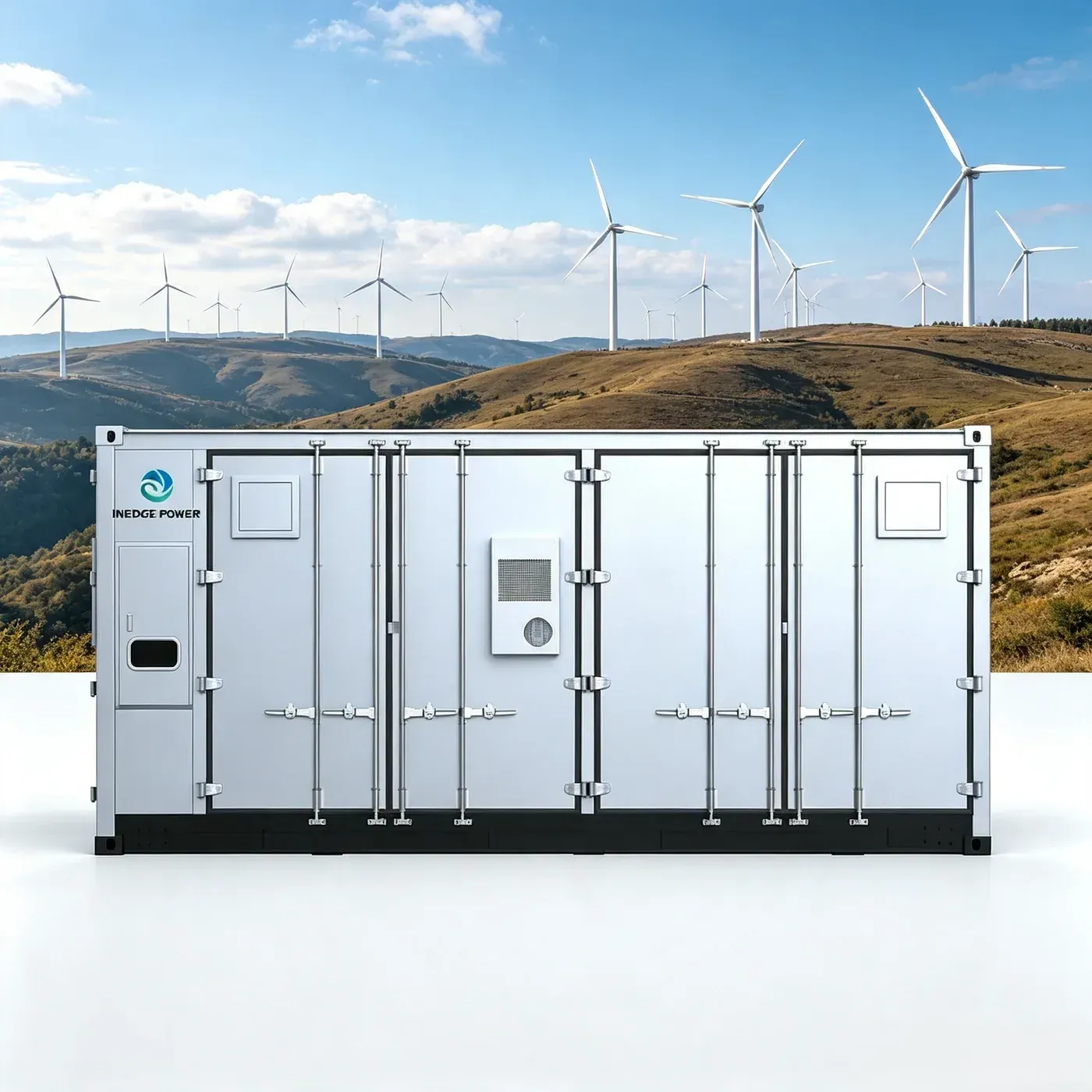

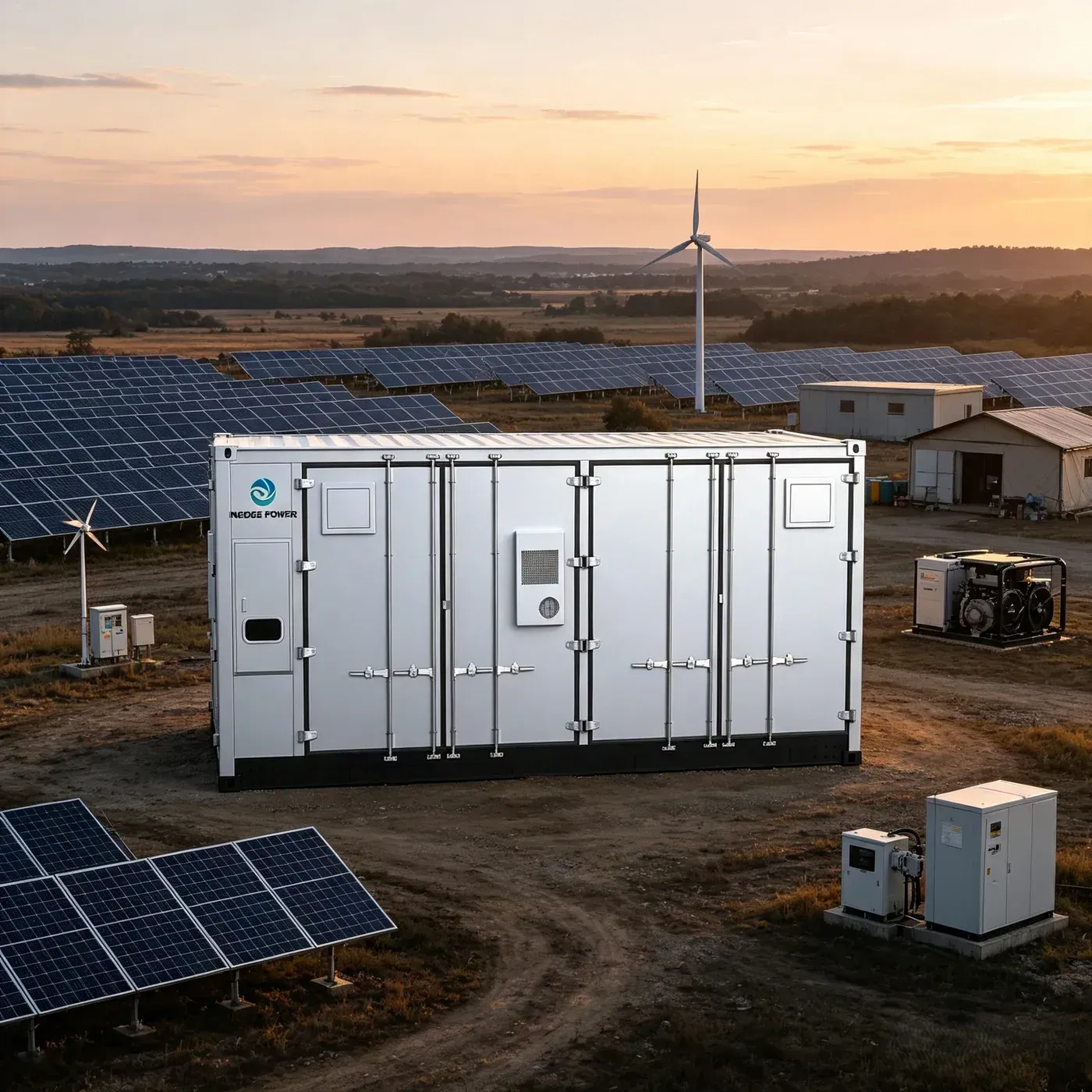

Inedge Vault DC5016
5.016MWh Liquid-Cooled Energy Storage Container
Key Features
Safety Protection
Smoke, temperature, and combustible-gas detection coordinate with explosion-proof ventilation and fluoroketone/water-based fire suppression.
Flexibility & High Efficiency
Side-by-side arrangement and pre-integrated plug-and-play design support centralized or string-type PCS for diverse projects.
Cost & Energy Saving
Smart liquid cooling limits cell temperature difference below 2°C. Low auxiliary power consumption and high-density integration lower total project investment.
High-Density Design
Twelve battery units and intelligent liquid cooling deliver high usable energy in a 20-foot container.
AI-powered Intelligence
Cloud-enabled APP, mini-program, smart BMS and precise SOC/SOH monitoring provide full-lifecycle tracking and early risk warning.
Technical specifications
5.016MWh LFP liquid-cooled container with 0.5CP output for grid-side storage.
Product highlights
- Safety Protection: Smoke, temperature, and combustible-gas detection coordinate with explosion-proof ventilation and fluoroketone/water-based fire suppression.
- Flexibility & High Efficiency: Side-by-side arrangement and pre-integrated plug-and-play design support centralized or string-type PCS for diverse projects.
- Cost & Energy Saving: Smart liquid cooling limits cell temperature difference below 2°C. Low auxiliary power consumption and high-density integration lower total project investment.
- High-Density Design: Twelve battery units and intelligent liquid cooling deliver high usable energy in a 20-foot container.
- AI-powered Intelligence: Cloud-enabled APP, mini-program, smart BMS and precise SOC/SOH monitoring provide full-lifecycle tracking and early risk warning.
| Rated energy | 5.016MWh |
|---|---|
| Rated C-rate | 0.5CP |
| Battery type | LFP, 314Ah, 3.2Vdc |
| Battery configuration | 12 * (1P104S*4) |
| Rated voltage | 1331.2Vdc |
| Voltage range | 1164.8-1497.6Vdc |
| Auxiliary power supply | 400Vac +/-5%, 50Hz |
| Dimensions (W*D*H) | 6058*2638*2896mm |
| Weight | 42t |
| Operating temperature | -30 to 50°C (>45°C derating) |
| Protection | IP55 outdoor |
| Corrosion protection | C4 (C5 optional) |
| Cooling | Intelligent liquid cooling |
| Fire detection | Smoke, temperature, and combustible-gas detection |
| Explosion protection | Explosion-proof ventilation |
| Fire suppression | Fluoroketone plus water-based fire pipeline |
| Alarm | Audible-visual alarm |
| Communication | LAN, CAN, RS485, I/O |
| Compliance | GB/T 36276, GB/T 34120, GB/T 34131 |
