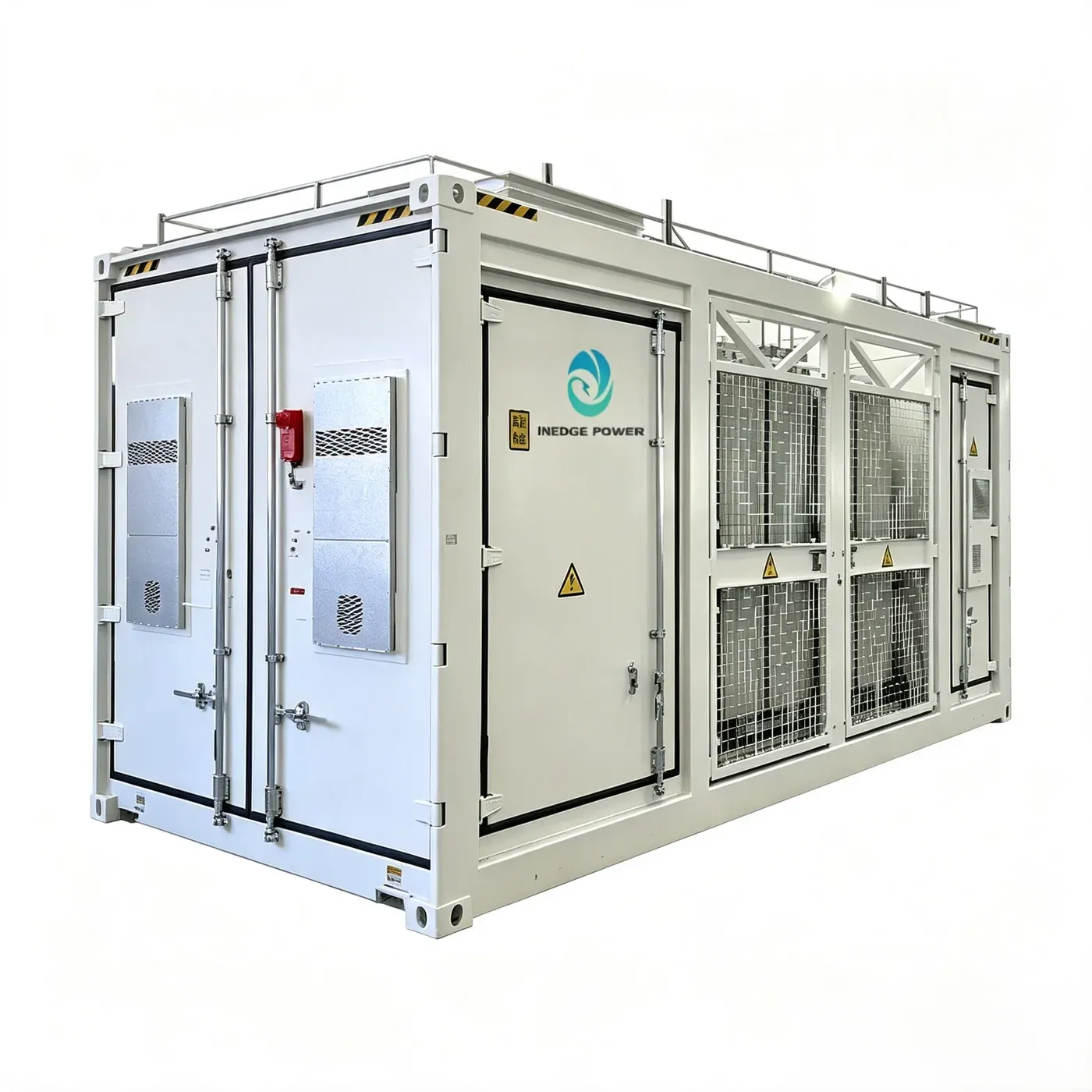

Inedge Vault AC1250

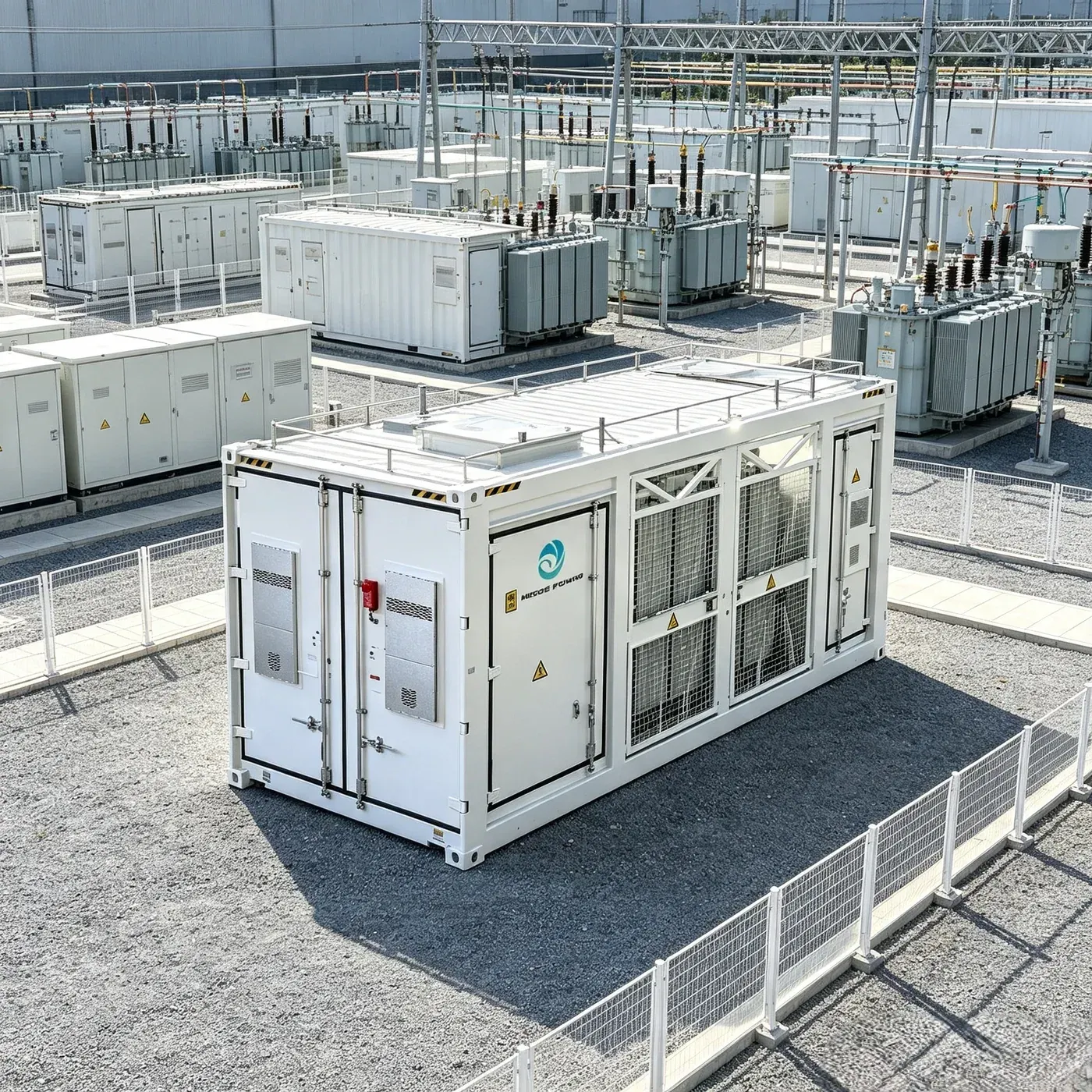

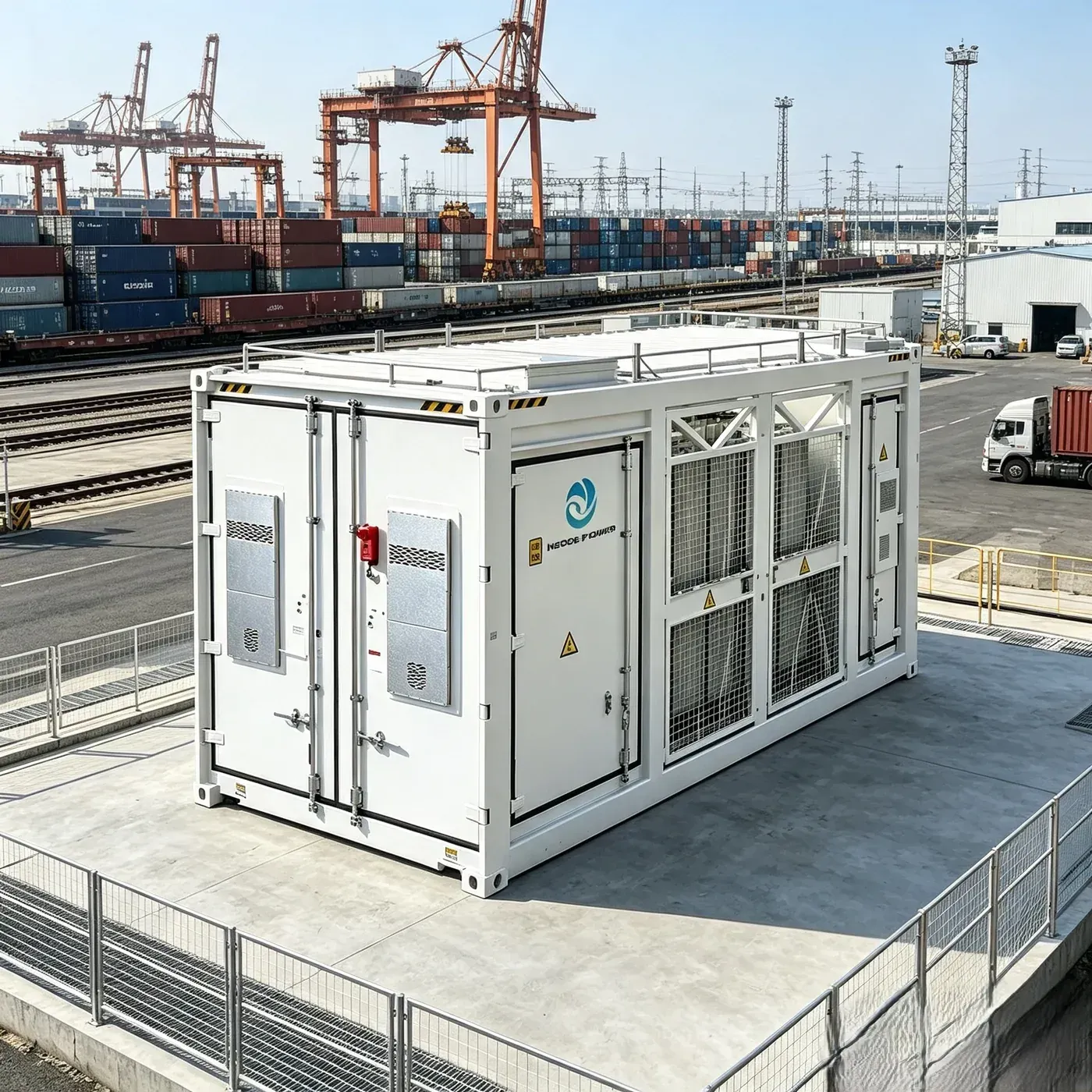

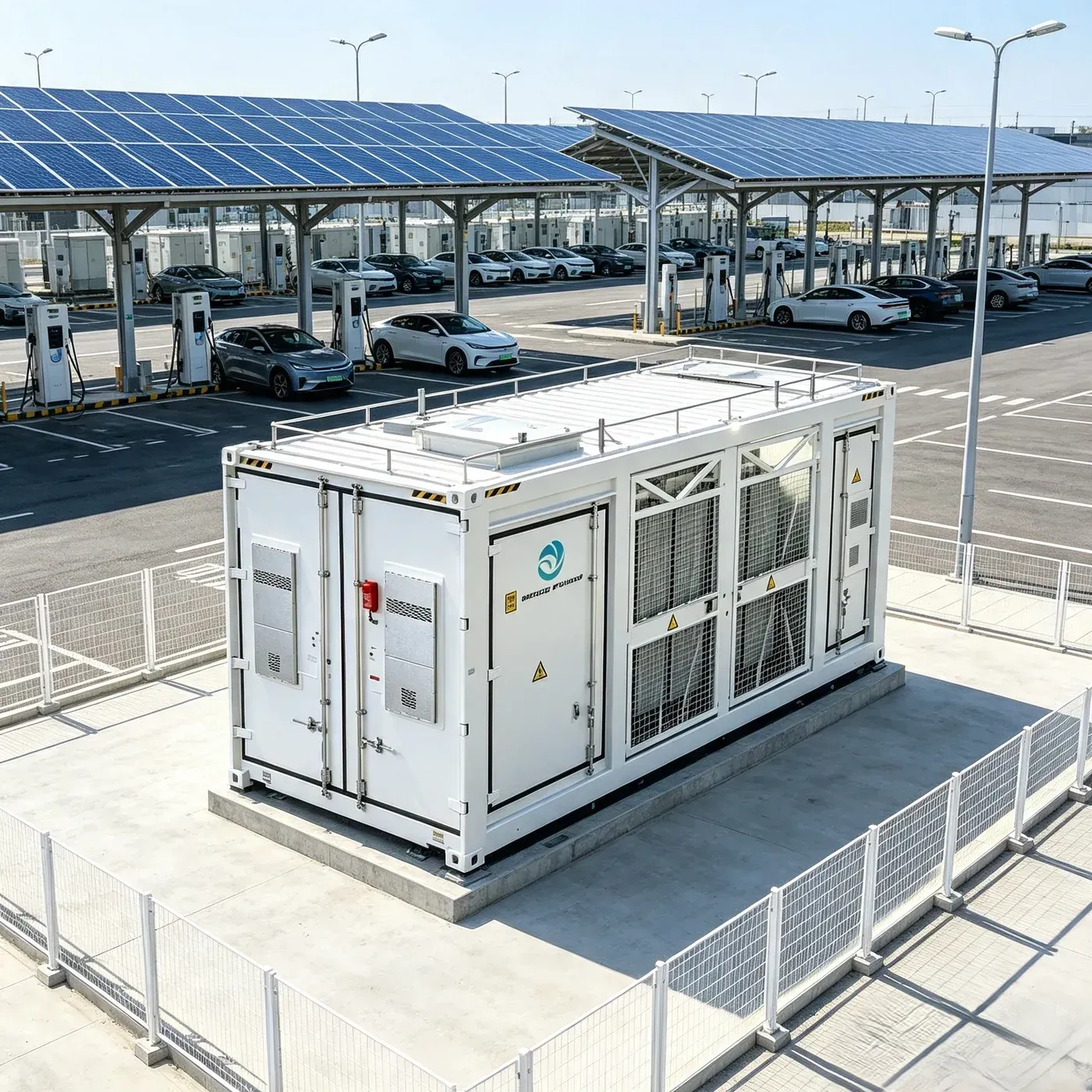

1250kW PCS Skid for Utility-Scale BESS
Key Features
Grid-Friendly Control
VSG/PQ/VF modes, high/low-voltage ride-through, and frequency ride-through support stable grid operation.
Fast Commissioning
Black start, smooth on/off-grid switching, IEC 61850, and 24-hour insulation testing support project delivery.
Intelligent Recording
Intelligent wave recording and local touch-screen monitoring locate events and faults instantly.
Scalable Architecture
Parallel products and coordinated battery charge/discharge management simplify capacity expansion for diverse battery systems.
Technical specifications
Utility PCS skid supporting smooth grid connection, black start, VSG/PQ/VF and ride-through control.
Product highlights
- Grid-Friendly Control: VSG/PQ/VF modes, high/low-voltage ride-through, and frequency ride-through support stable grid operation.
- Fast Commissioning: Black start, smooth on/off-grid switching, IEC 61850, and 24-hour insulation testing support project delivery.
- Intelligent Recording: Intelligent wave recording and local touch-screen monitoring locate events and faults instantly.
- Scalable Architecture: Parallel products and coordinated battery charge/discharge management simplify capacity expansion for diverse battery systems.
| DC operating voltage | 1000-1500Vdc |
|---|---|
| Maximum operating current | <=2806A |
| Rated AC power | 1250 / 2500 / 5000kW |
| Rated AC voltage | 690Vac |
| Rated frequency | 50/60Hz |
| Power factor range | -1 to +1 |
| Protection | IP55 |
| Switching mode | Breaker |
| Transformer type | Oil type |
| Transformer capacity | 2500kVA |
| Transformer voltage ratio | 0.69kV to 10/20/35kV |
| Skid dimensions (W*H*D) | 6058*2896*2438mm |
| Skid weight | 25t |
| Communication | IEC 61850 |
