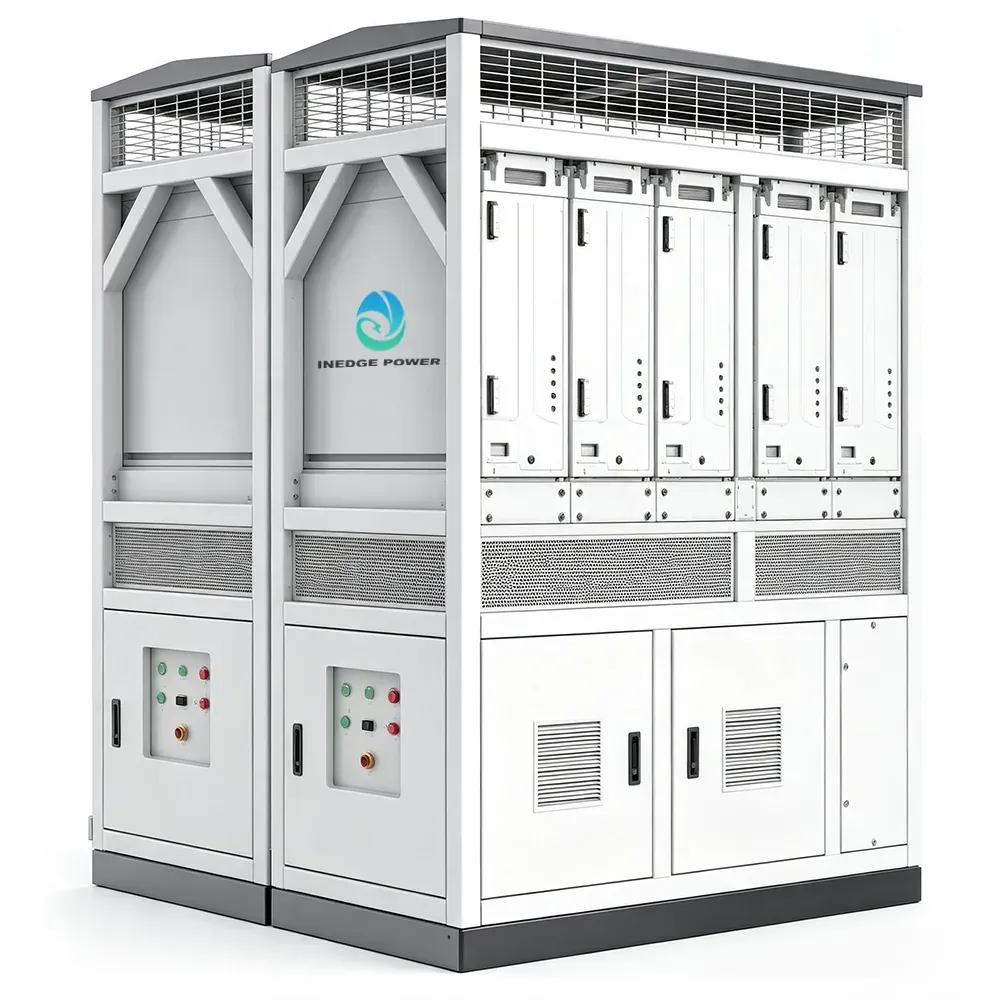

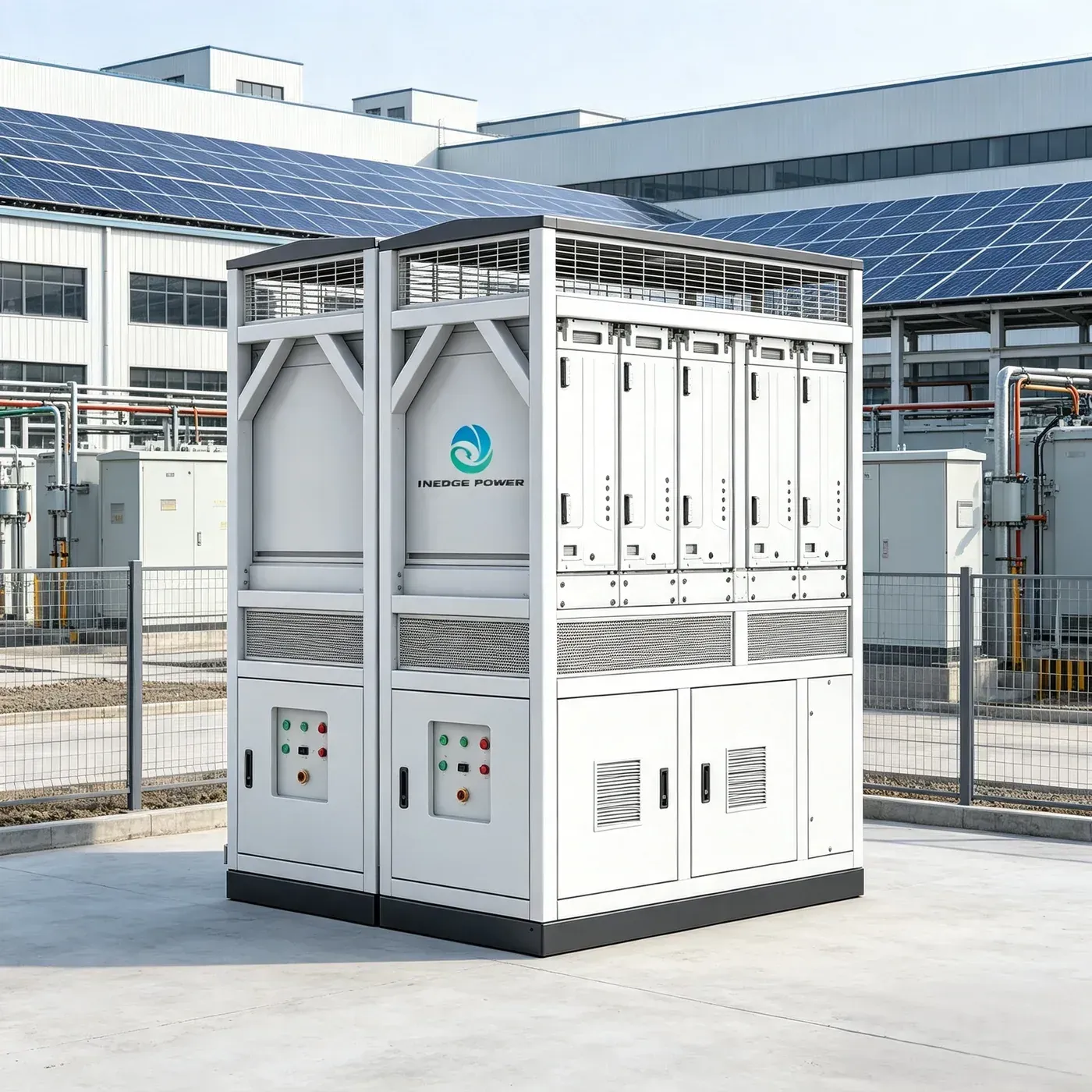

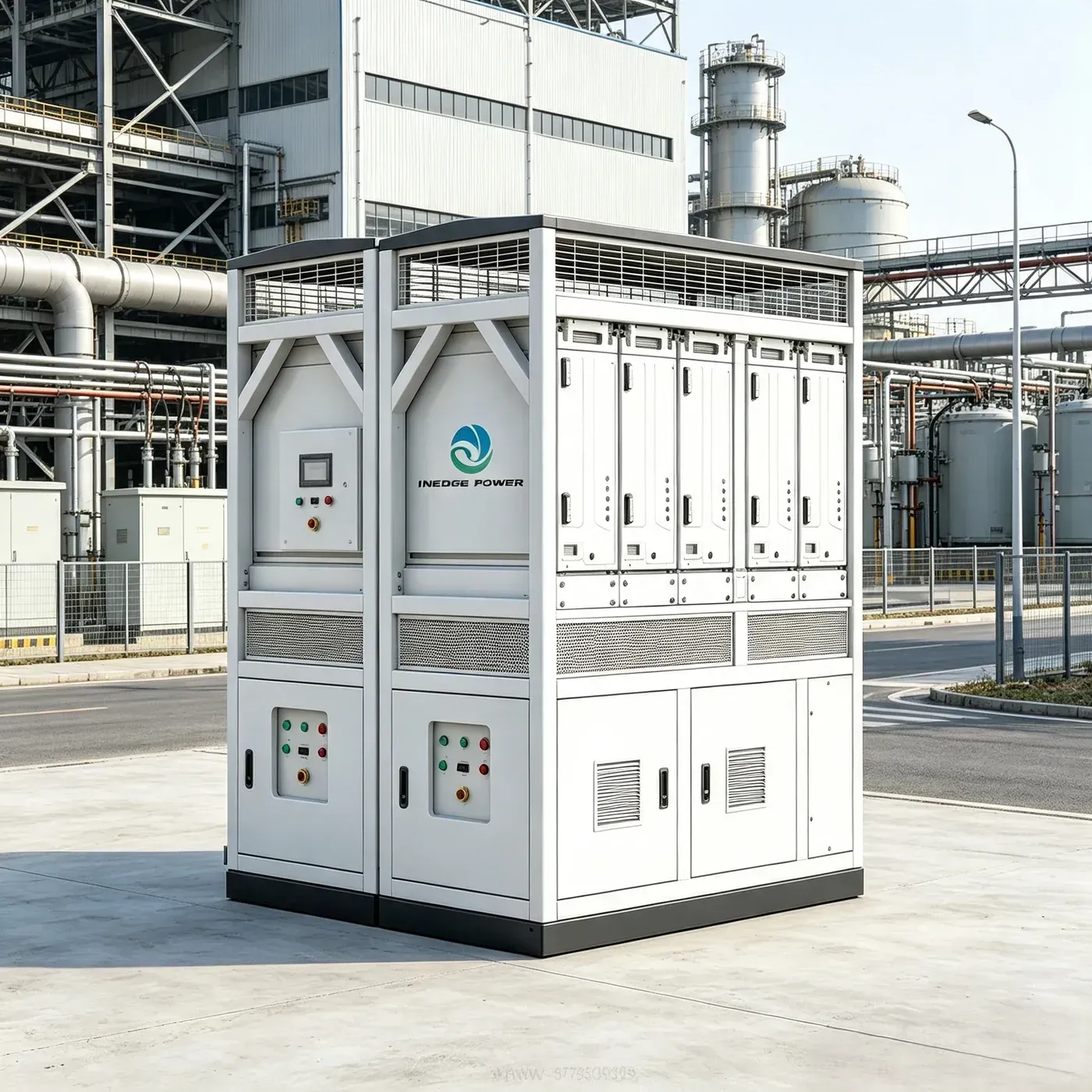

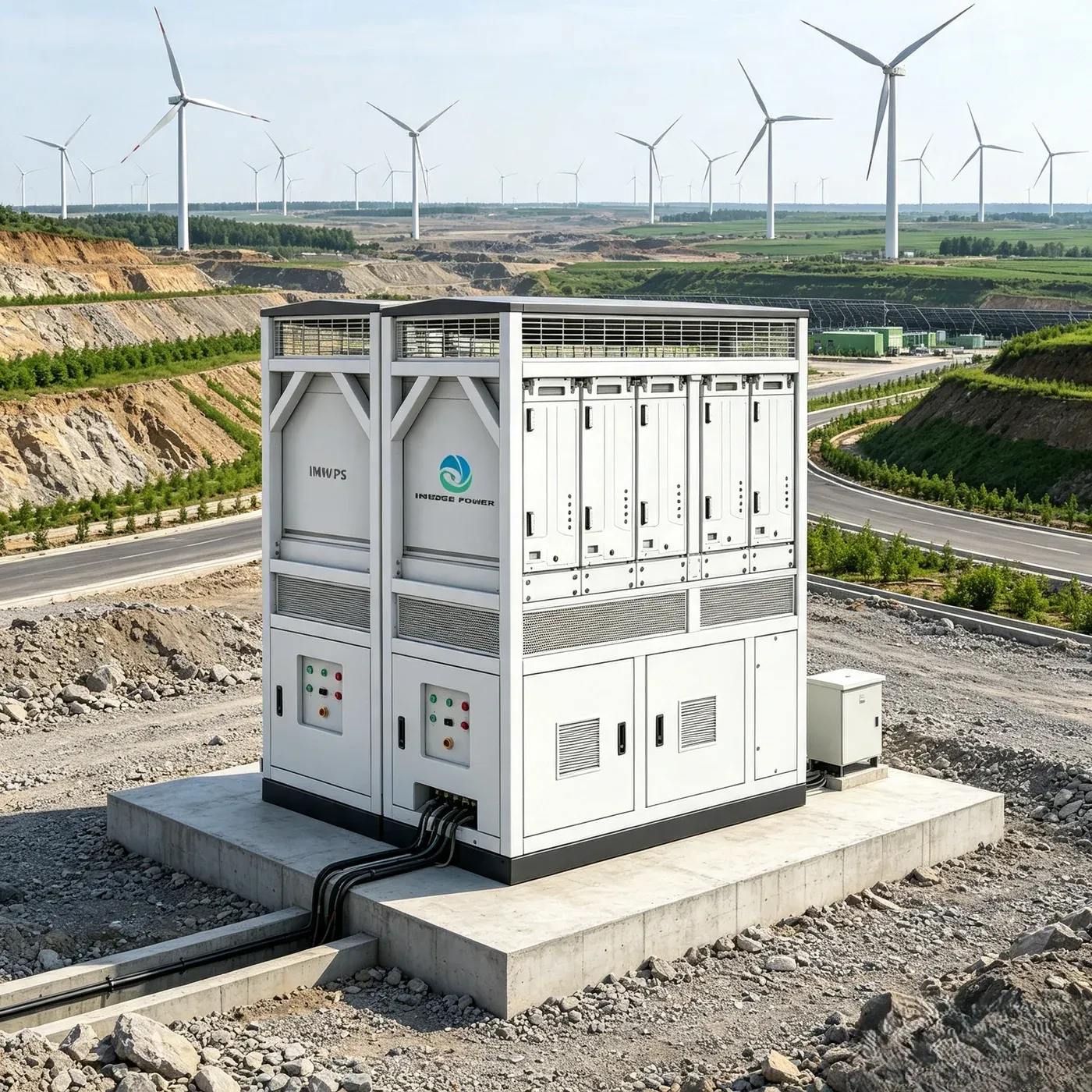

Inedge Vault PCS1000
2500kW PCS Skid for 1150-1500Vdc BESS
Key Features
Grid-Forming Capability
VSG/PQ/VF, high/low-voltage and frequency ride-through, plus black-start functions support resilient grid operation.
Intelligent Recording
Wave recording and local touch-screen diagnostics simplify commissioning and fault analysis.
Insulation Safety
A 24-hour insulation test supports system safety before commissioning.
System Expansion
Parallel products support capacity expansion and coordinated battery charge/discharge management for diverse battery systems.
Technical specifications
High-power PCS platform for utility storage with black start and grid-forming control.
Product highlights
- Grid-Forming Capability: VSG/PQ/VF, high/low-voltage and frequency ride-through, plus black-start functions support resilient grid operation.
- Intelligent Recording: Wave recording and local touch-screen diagnostics simplify commissioning and fault analysis.
- Insulation Safety: A 24-hour insulation test supports system safety before commissioning.
- System Expansion: Parallel products support capacity expansion and coordinated battery charge/discharge management for diverse battery systems.
| DC operating voltage | 1150-1500Vdc |
|---|---|
| Maximum operating current | <=2450A |
| Rated AC power | 2500kW |
| Rated AC voltage | 400V / 800Vac |
| Rated frequency | 50/60Hz |
| Power factor range | -1 to +1 |
| Protection | IP55 |
| Dimensions (W*H*D) | 1900*2250*1700mm |
| Weight | 2.4t |
| Communication | IEC 61850 |
