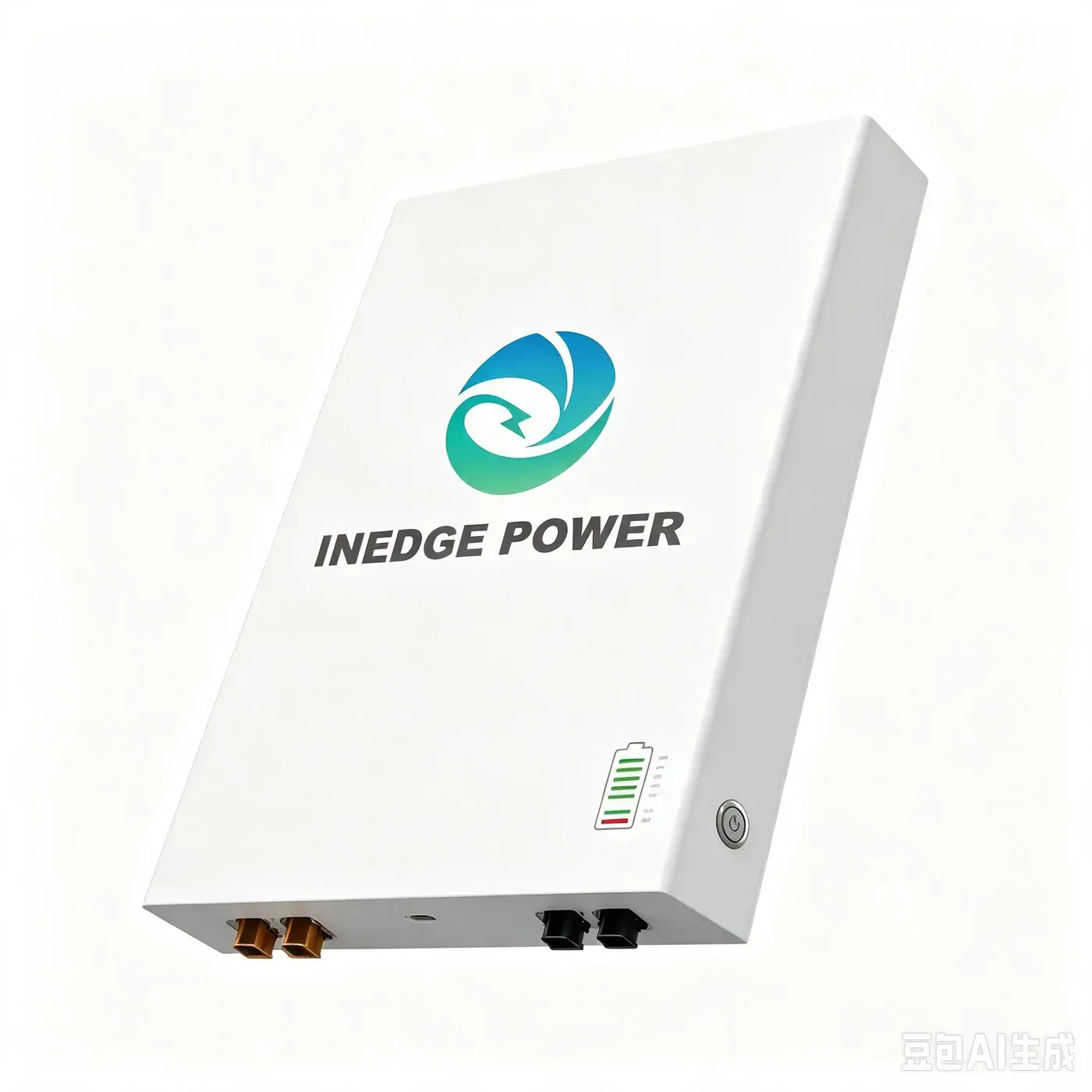

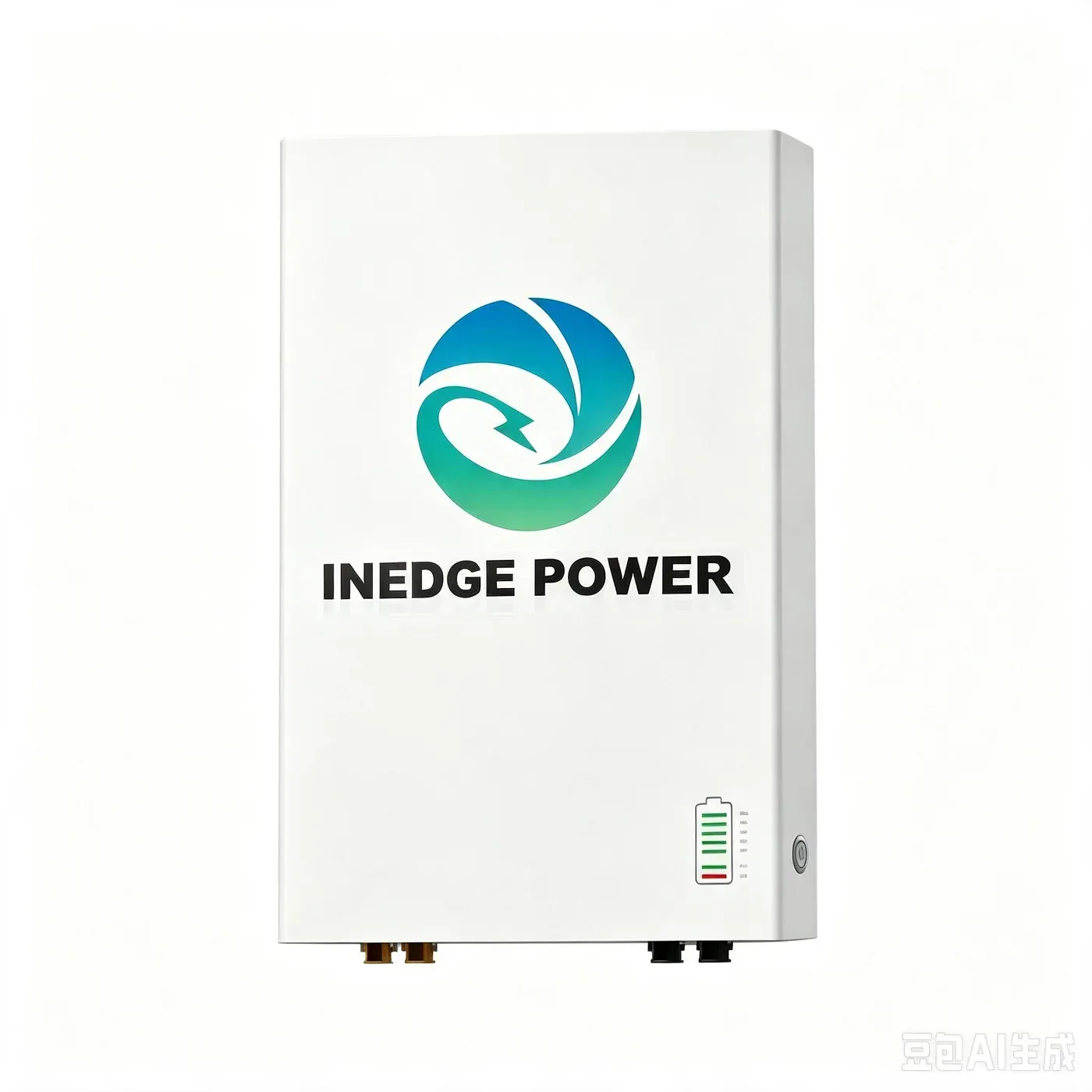

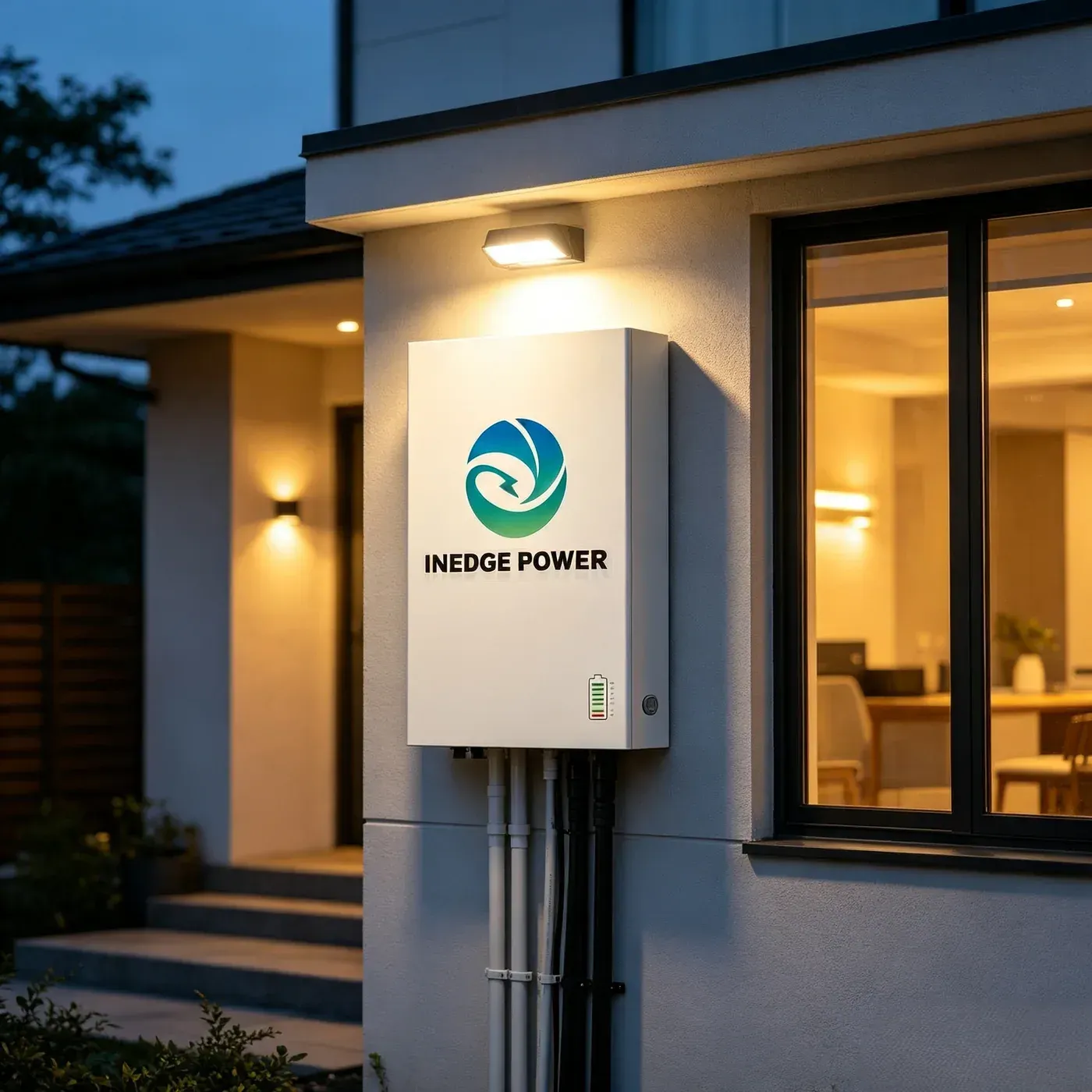

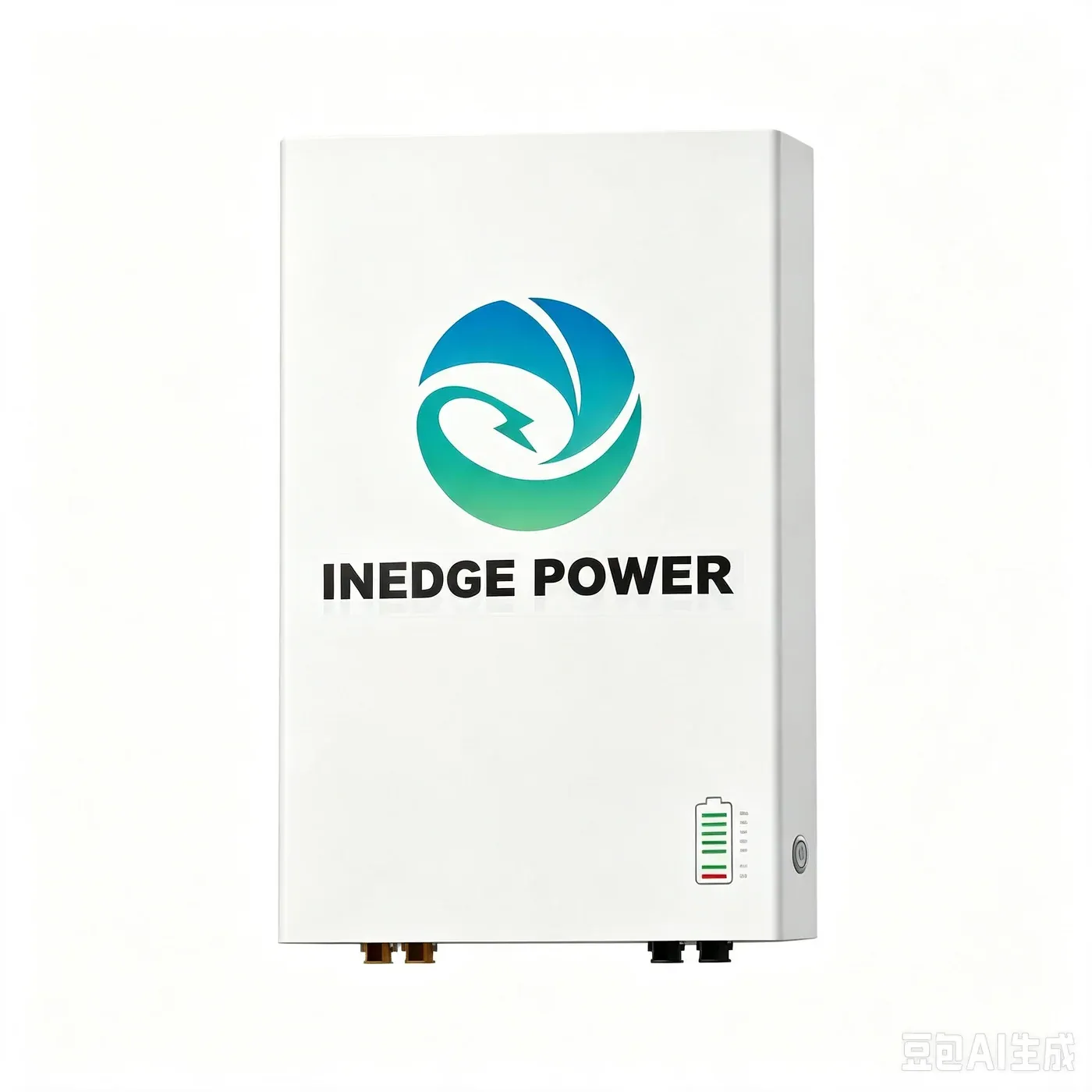

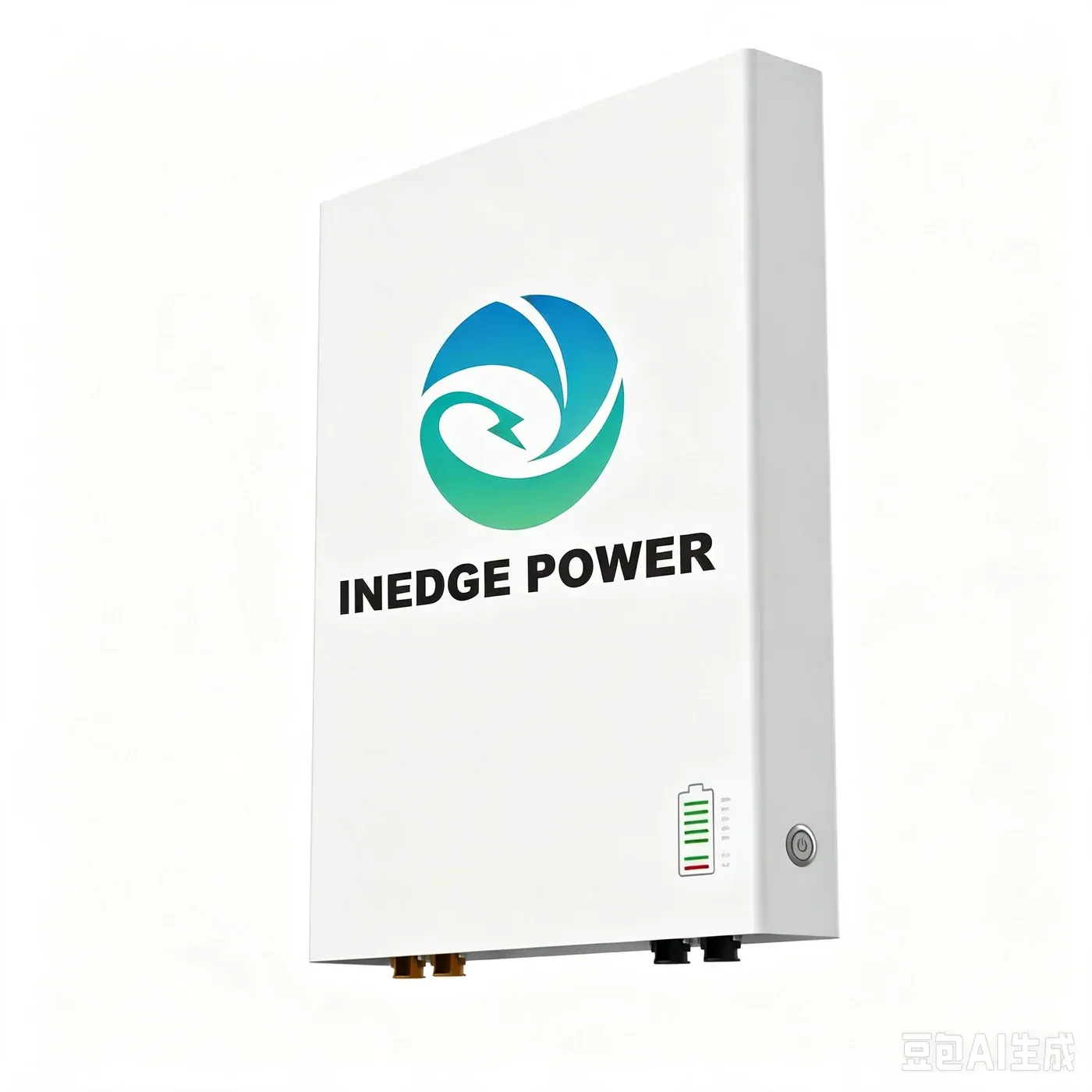

Inedge Pod R10
Rack-Mounted 51.2V Residential Energy Storage Battery
Key Features
Long Cycle Life
LFP cells deliver at least 6000 cycles to 85% DOD with low self-discharge.
Flexible Load Support
High charge and discharge current supports UPS, telecom, and compact storage applications.
Wide Environmental Adaptability
Charges from 0 to 45°C and discharges from -20 to 60°C. The IP60 dust-protected metal rack cabinet suits indoor C&I, UPS, telecom, and data-room deployments.
Indoor Rack Integration
Standard rack dimensions, CAN/RS485/RS232 interfaces, and optional LED/LCD simplify installation and O&M.
Technical specifications
Rack-mounted LFP battery supplied in separate IEG-51200 200Ah/10.24kWh and 314Ah source-sheet configurations.
Product highlights
- Long Cycle Life: LFP cells deliver at least 6000 cycles to 85% DOD with low self-discharge.
- Flexible Load Support: High charge and discharge current supports UPS, telecom, and compact storage applications.
- Wide Environmental Adaptability: Charges from 0 to 45°C and discharges from -20 to 60°C. The IP60 dust-protected metal rack cabinet suits indoor C&I, UPS, telecom, and data-room deployments.
- Indoor Rack Integration: Standard rack dimensions, CAN/RS485/RS232 interfaces, and optional LED/LCD simplify installation and O&M.
| Variant A - Model | IEG-51200 |
|---|---|
| Variant A - Rated voltage | 51.2Vdc |
| Variant A - Capacity | 200Ah / 10.24kWh |
| Variant A - Cycle life | >=6000 cycles @ 85% DOD |
| Variant A - Monthly self-discharge | <=2% |
| Variant A - Charge efficiency | Source sheet: From 100% to 0.2C |
| Variant A - Discharge efficiency | 96-99% @ 1C |
| Variant A - Charge / float voltage | 58.4Vdc / 58Vdc |
| Variant A - Charge current | 40A standard / 120A maximum |
| Variant A - Discharge current | 120A continuous |
| Variant A - Discharge cutoff | 44.8Vdc |
| Variant A - Charge temperature | 0 to 45°C @ 60+/-25% RH |
| Variant A - Discharge temperature | -20 to 60°C @ 60+/-25% RH |
| Variant A - Storage temperature | 0 to 40°C @ 60+/-25% RH |
| Variant A - Protection | IP60 |
| Variant A - Chemistry / enclosure | Lithium iron phosphate / metal rack-mounted case |
| Variant A - Product size | 700*980*100mm |
| Variant A - Packaging size | 730*1010*130mm |
| Variant A - Net / gross weight | 95kg / 98kg |
| Variant A - Terminal | M8 |
| Variant A - Communication | Optional CANBus / RS485 / RS232 |
| Variant A - SOC display | Optional LED / LCD |
| Variant B - Model | 51.2V / 314Ah rack battery (model not supplied) |
| Variant B - Cell capacity | 314Ah @ 0.2C discharge |
| Variant B - Maximum voltage | 58.4V +/-1.0V @ 0.2C5A |
| Variant B - Minimum voltage | 40.0V +/-2.0V @ 0.2C5A |
| Variant B - Continuous current | 150A |
| Variant B - Pulse discharge current | 220A +/-5A for 1s; 220A +/-15A for 100ms |
| Variant B - BMS protection | OCVP / ODVP / OCP / SCP / OTP |
| Variant B - Communication | RS485 / CAN |
| Variant B - Charge temperature | 0 to 45°C |
| Variant B - Discharge temperature | -10 to 60°C |
| Variant B - Storage temperature | -5 to 35°C |
| Variant B - Standard environment | 25+/-2°C; 45-75% RH; 86-106kPa |
| Variant B - Dimensions | 485*400*837mm maximum |
| Variant B - Weight | 150kg |
| Variant B - Enclosure | White metal |
