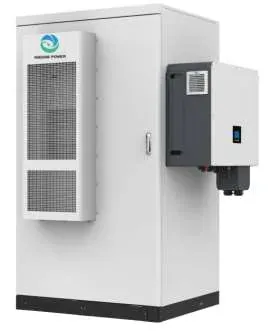

Inedge Pod P100
102.4kWh Solar-Storage All-in-One Cabinet
Key Features
Safety Protection
Anomaly warning, multi-stage fire protection, and coordinated electrical protection support safe deployment.
Plug-and-Play Flexibility
Integrated architecture reduces installation and commissioning effort.
Cost & Energy Saving
Smart air cooling and EMS lower auxiliary power loss. High integration improves energy density, reduces investment, and minimizes floor-space occupation.
AI-powered Intelligence
Cloud platform and mobile APP work with smart BMS for full battery safety protection and convenient remote O&M.
Technical specifications
102.4kWh air-cooled solar-storage cabinet with integrated EMS for distributed energy and backup.
Product highlights
- Safety Protection: Anomaly warning, multi-stage fire protection, and coordinated electrical protection support safe deployment.
- Plug-and-Play Flexibility: Integrated architecture reduces installation and commissioning effort.
- Cost & Energy Saving: Smart air cooling and EMS lower auxiliary power loss. High integration improves energy density, reduces investment, and minimizes floor-space occupation.
- AI-powered Intelligence: Cloud platform and mobile APP work with smart BMS for full battery safety protection and convenient remote O&M.
| Rated capacity | 102.4kWh |
|---|---|
| Nominal voltage | 512Vdc |
| Battery voltage range | 456-576Vdc |
| Battery cooling | Air cooling |
| Maximum C-rate | 0.5CP |
| Protection | IP54 |
| Operating temperature | -20 to 50°C |
| Dimensions (W*D*H) | 1533*1000*2150mm |
| Weight | 1430kg |
| Compliance | IEC 62619, UN 38.3, EN IEC 62477-1, EN IEC 61000-6-2/4 |
| Maximum PV voltage | 1000Vdc |
| MPPT range | 180-900Vdc |
| Maximum input current per string | 36A |
| MPPT quantity | 4 |
| Maximum input power per string | 75kW |
| On-grid rated AC power | 50kW |
| On-grid maximum AC power | 55kW |
| On-grid maximum AC current | 75A |
| On-grid rated voltage | 400V, 3L/N/PE |
| On-grid frequency range | 50/60Hz +/-5Hz |
| AC current harmonics | <3% at 100% load |
| Off-grid rated AC voltage | 400V, 3L/N/PE |
| Off-grid frequency | 50/60Hz |
| Off-grid rated AC power | 50kW |
| Off-grid maximum charge/discharge current | 75A |
| Grid transfer time | <=10s |
