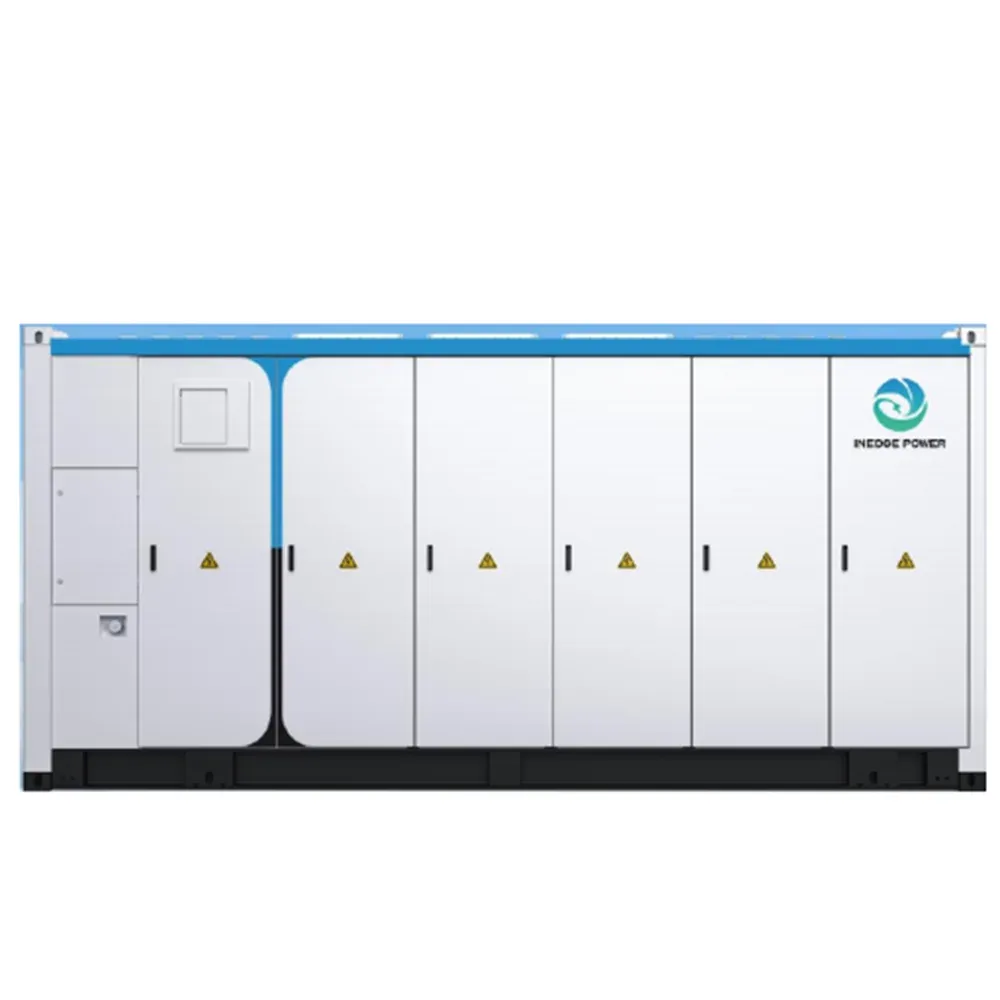

Inedge Vault C5016
5.016MWh Liquid-Cooled Energy Storage Container
Key Features
Safety Protection
Cell anomaly early warning, multi-stage fire suppression and six-level electrical protection support safe operation.
Flexibility & High Efficiency
Site-adaptable container architecture supports plug-and-play deployment with centralized or string PCS.
Cost & Energy Saving
Balanced liquid cooling and high-density layout reduce auxiliary consumption, footprint, and lifecycle cost.
AI-powered Intelligence
Cloud platform, mobile operations, smart BMS, and lifecycle SOC/SOH monitoring support predictive maintenance.
Technical specifications
Product configurations are tailored to site conditions, grid requirements, and the intended operating strategy. Contact the Inedge Power project team for the complete engineering specification.
| Battery type | LFP, 3.2V / 314Ah |
|---|---|
| System capacity | 5.016MWh (20 ft container) |
| Rated C-rate | 0.5CP |
| DC voltage range | 1123-1500Vdc |
| DC efficiency | >=94% @ 0.5CP |
| Cooling method | Intelligent liquid cooling |
| Cell temperature difference | <=3°C |
| Fire suppression | Gas suppression, smart alarm, combustible-gas detection, explosion-proof ventilation and relief, optional pack-level suppression, reserved dry water-fire pipeline |
| Compliance | GB/T 36276, IEC 62619, UL 9540, UL 9540A, UL 1973, UN 38.3 |
| Dimensions (L*W*H) | 6058*2438*2896mm |
| Weight | 42t |
