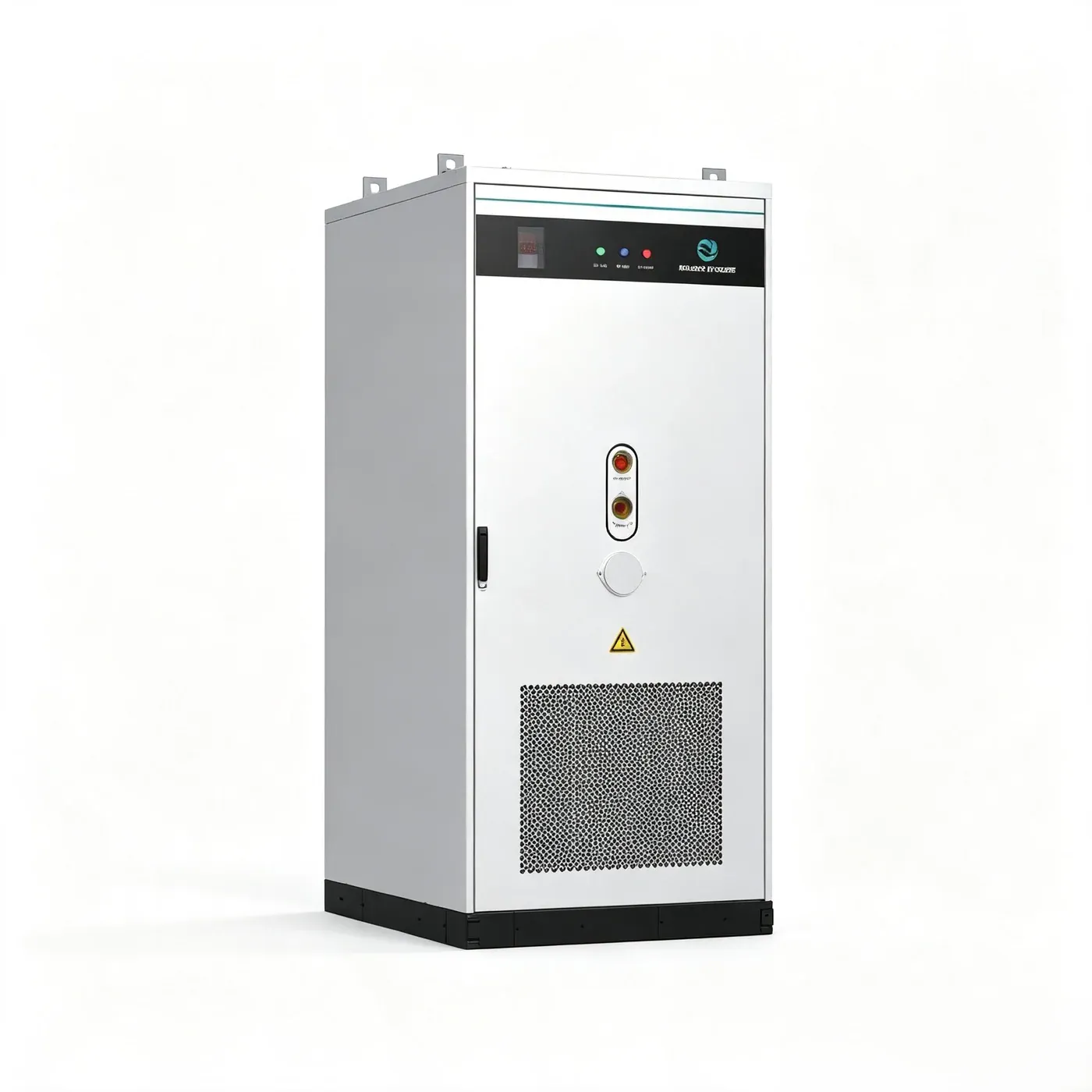

Inedge Pod DB232 Liquid
232kWh Liquid-Cooled All-in-One Energy Storage Cabinet
Key Features
Safety Protection
Cell anomaly early warning, multi-stage fire suppression, and six-level electrical protection support safe operation.
Flexibility & High Efficiency
Side-by-side plug-and-play cabinets support up to ten parallel units.
Cost & Energy Saving
Liquid cooling keeps the battery balanced and lowers power and footprint requirements.
AI-powered Intelligence
Cloud platform, mobile APP and smart BMS provide remote monitoring and predictive maintenance.
Technical specifications
Product configurations are tailored to site conditions, grid requirements, and the intended operating strategy. Contact the Inedge Power project team for the complete engineering specification.
| Formal model | Inedge Pod DB232 |
|---|---|
| Battery type | LFP, 280Ah, 3.2Vdc |
| Battery configuration | 1P52S*5S |
| Rated DC voltage | 832Vdc |
| DC voltage range | 715-936Vdc |
| Rated energy | 232kWh |
| Rated C-rate | 0.5CP |
| Rated AC voltage | 400Vac |
| Rated AC power | 105kW |
| Maximum AC power | 115.5kW |
| AC output type | 3P+N+PE (N terminal reserved) |
| Isolation | Non-isolated |
| Grid frequency | 50/60Hz |
| Grid function | Grid-tied and off-grid |
| Surge protection | Type 2 |
| Dimensions (W*D*H) | 1035*1400*2350mm |
| Weight | 2650kg |
| Operating temperature | -30 to 50°C (>45°C derating) |
| Protection | IP55 outdoor |
| Corrosion protection | C4 (up to C5) |
| Cooling | Intelligent liquid cooling |
| Fire detection | Smoke, temperature, and combustible-gas detectors |
| Explosion protection | Explosion-proof ventilation |
| Fire suppression | Module aerosol; system aerosol plus water-based fire-fighting pipeline |
| Alarm | Audible-visual alarm |
| Battery management system | 5 BMU + 1 BCMU |
| Communication | LAN, CAN, RS485, I/O |
| Compliance | GB/T 36276, GB/T 34120, GB/T 34131 |
